6600112-5
CONN HEADER MULTI-BEAM 28POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

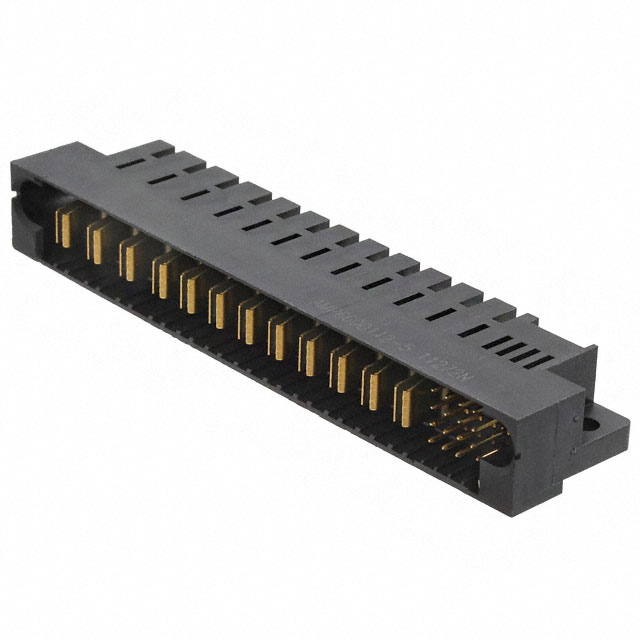

TE Connectivity AMP Connectors MULTI-BEAM XL series connector header, part number 6600112-5. This 28-position right-angle PCB header features male pins and blades for through-hole mounting. The connector utilizes a Multi-Beam design with 16 signal and 12 power contacts, offering a 0.100" (2.54mm) pitch. Contact finish is gold with a thickness of 30.0µin (0.76µm). Integrated mating guides facilitate proper alignment. This component is typically employed in high-density power and signal applications within the telecommunications, industrial, and data processing sectors. Packaged in trays.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 12 Power |
| Number of Columns | - |
