650801-1

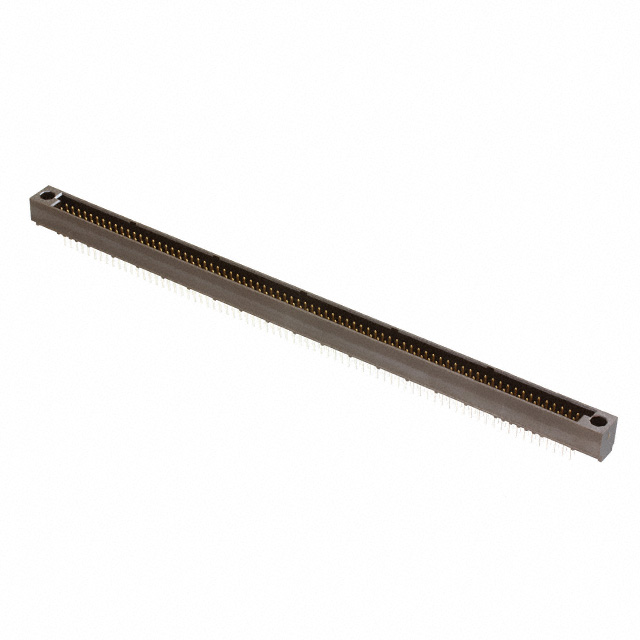

CONN HEADER HD 96POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors HDI Series 650801-1 is a 96-position, 4-row header designed for PCB mounting. Featuring male pins with a 0.100" (2.54mm) pitch, this connector offers a natural color and a through-hole mounting type. The contact finish is gold with a thickness of 30.0µin (0.76µm). This High Density (HDC, HDI, HPC) connector is engineered with a mating guide for enhanced alignment. The contact layout includes 94 signal positions and 2 coax positions, with 56 positions loaded. Applications for this component are found in data communications and industrial automation.
Additional Information
Series: HDI (High Density Interconnect)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | 56 |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | High Density (HDC, HDI, HPC) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 94 Signal, 2 Coax |
| Number of Columns | - |
