6469354-1
CONN HDR HI SPEED 60POS EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

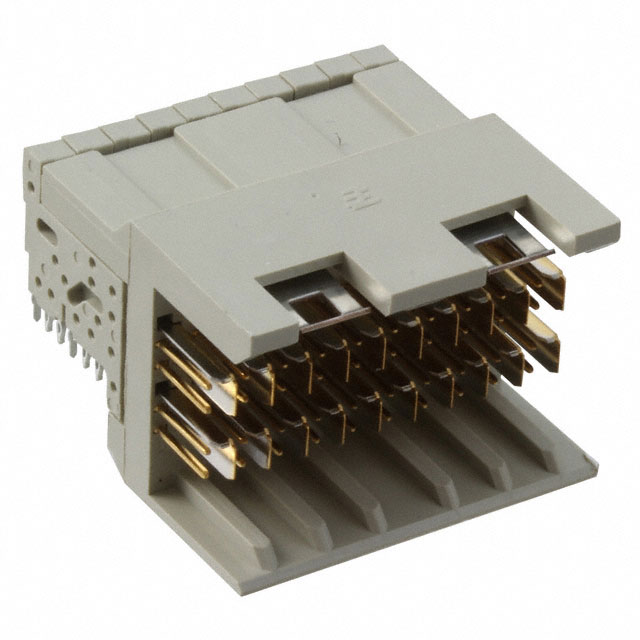

TE Connectivity AMP Connectors Z-PACK HM-Zd series male header connector, part number 6469354-1. This 60-position, 4-row right-angle header features a 0.098" (2.50mm) pitch and is designed for board edge mounting via through-hole technology. The connector utilizes press-fit termination for secure and reliable connections. Contacts offer a gold plating with a 30.0µin (0.76µm) thickness for enhanced conductivity and durability. With a typical contact layout of 40 signal and 20 ground positions, this component is suitable for high-speed applications across industries such as telecommunications, data networking, and industrial automation. Supplied in bulk packaging.
Additional Information
Series: Z-PACK HM-ZdRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 60 |
| Pitch | 0.098"" (2.50mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | High Speed |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 40 Signal, 20 Ground |
| Number of Columns | 10 |
