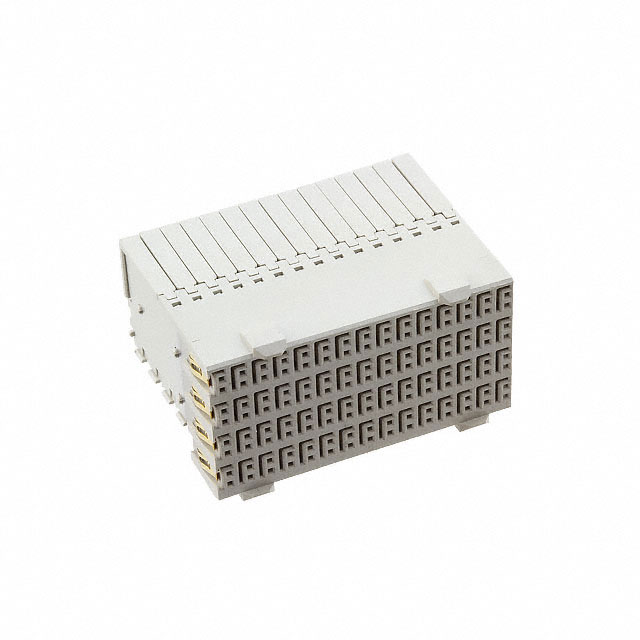

6469294-1
CONN RCPT HI SPEED 180P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
180 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle High Speed
Additional Information
Series: Z-PACK HM-ZdRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 180 |
| Pitch | 0.098"" (2.50mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Daughtercard |
| Connector Style | High Speed |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 120 Signal, 60 Ground |
| Number of Columns | 15 |
