6450869-9
CONN RCPT MULTI-BEAM 40POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

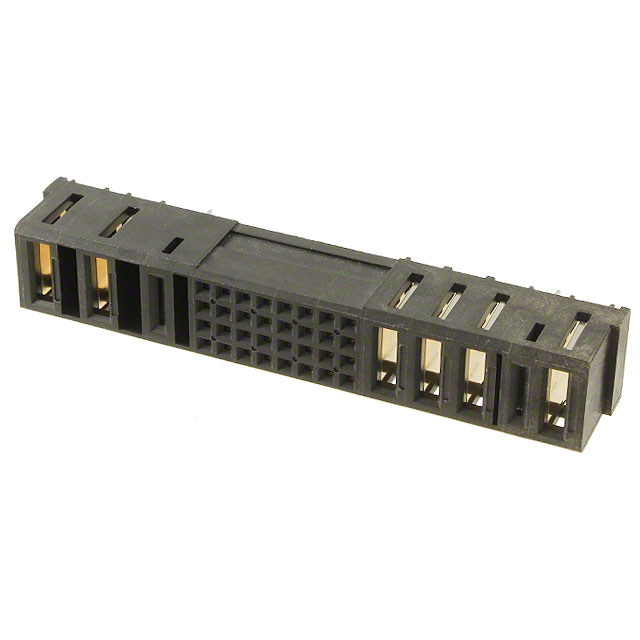

TE Connectivity AMP Connectors MULTI-BEAM XLE series receptacle, part number 6450869-9, offers a robust solution for high-density interconnect applications. This 40-position receptacle features female sockets and blade sockets designed for through-hole mounting. The contact finish is gold with a thickness of 30.0µin (0.76µm), ensuring reliable conductivity. It incorporates a typical contact layout of 32 signal and 8 power contacts, with a pitch of 0.100" (2.54mm). The termination method is press-fit. This component is commonly utilized in demanding industries such as telecommunications, data centers, and industrial automation, where high performance and durability are critical. Supplied in tray packaging, it is configured for direct PCB integration.
Additional Information
Series: MULTI-BEAM XLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Signal, 8 Power |
| Number of Columns | - |
