6450849-5
CONN HEADER MULTI-BEAM 40POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

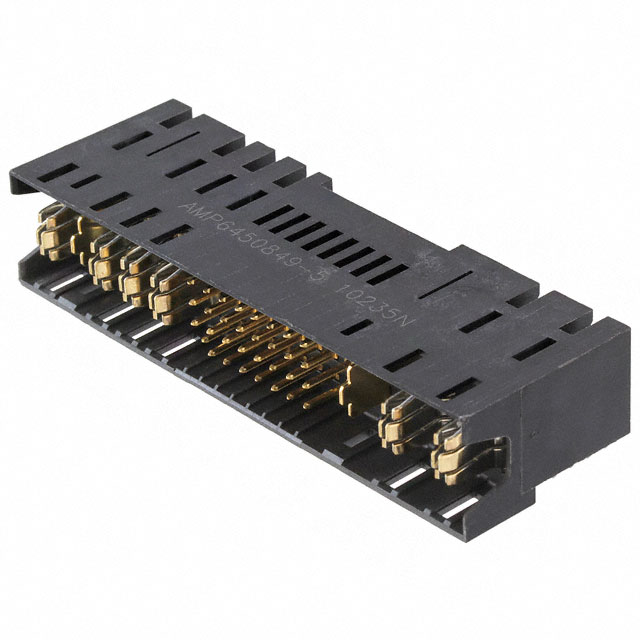

TE Connectivity AMP Connectors MULTI-BEAM XLE series 40-position right-angle through-hole header, part number 6450849-5. This black connector features male pins and blades with a 0.100" (2.54mm) pitch. It is designed for high-density interconnect applications, with a typical configuration of 32 signal and 8 power contacts. The contacts boast a gold plating with a thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. Termination is achieved via a press-fit method, ensuring robust mechanical and electrical connections. This component is commonly utilized in high-performance computing, telecommunications infrastructure, and industrial automation systems. Supplied in trays.
Additional Information
Series: MULTI-BEAM XLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 40 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Signal, 8 Power |
| Number of Columns | - |
