6450668-2

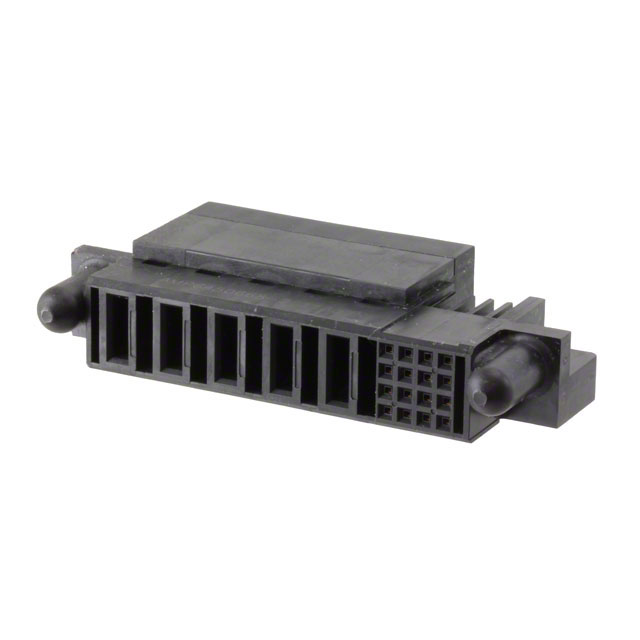

CONN RCPT MULTI-BEAM 21POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 6450668-2, offers a 21-position, right-angle, through-hole mounting solution. This connector features female sockets and blade sockets with a 0.100" (2.54mm) pitch, designed for high-density signal and power delivery. The contact finish is gold with a thickness of 30.0µin (0.76µm), ensuring excellent conductivity and durability. With a typical contact layout of 16 signal and 5 power positions, this receptacle is suitable for demanding applications. The design incorporates a guide pin for accurate mating and utilizes press-fit termination for secure PCB attachment. This component is commonly found in telecommunications, industrial automation, and data storage systems. It is supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 21 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 5 Power |
| Number of Columns | - |
