6450566-1

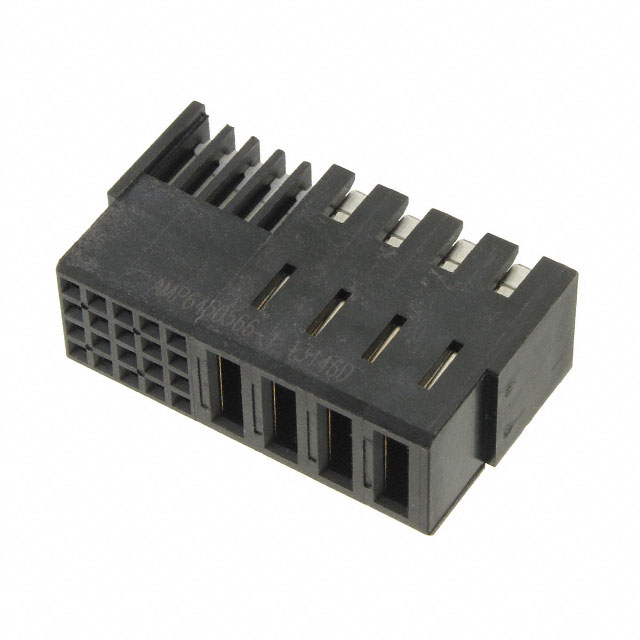

CONN RCPT MULTI-BEAM 24P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 6450566-1, offers a 24-position, right-angle, board-edge mount solution. This connector features female sockets and blade sockets designed for through-hole termination, with a 0.100" (2.54mm) pitch across its four rows. The contact finish is gold with a thickness of 30.0µin (0.76µm), ensuring high conductivity and durability. Configured with 20 signal and 4 power contacts, this receptacle includes a guide pin for proper alignment. It is suitable for demanding applications in the telecommunications, industrial, and data processing industries, utilizing press-fit and solder termination methods. The component is supplied in trays.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 24 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 20 Signal, 4 Power |
| Number of Columns | - |
