6450561-7
CONN RCPT MULTI-BEAM 75POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

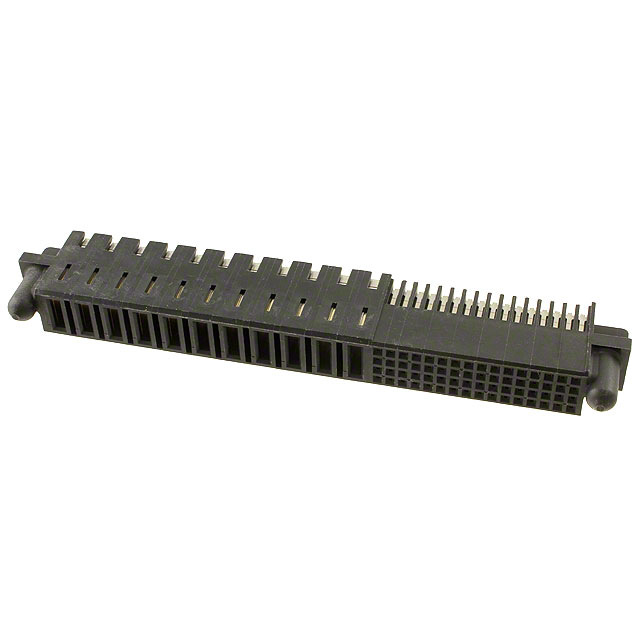

TE Connectivity AMP Connectors MULTI-BEAM XL Series 6450561-7 is a 75-position right-angle receptacle connector designed for PCB mounting. This through-hole component features female sockets and blade sockets, with a contact finish of gold and a thickness of 30.0µin (0.76µm). The connector is configured with 4 rows, accommodating 64 signal and 11 power contacts. It includes a guide pin for proper alignment and utilizes a press-fit termination method. The pitch is 0.100" (2.54mm). This high-density connector is suitable for applications in telecommunications, data centers, and high-performance computing environments where robust signal integrity and power delivery are critical.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 75 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 64 Signal, 11 Power |
| Number of Columns | - |
