6450560-4
CONN RCPT MULTI-BEAM 46POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

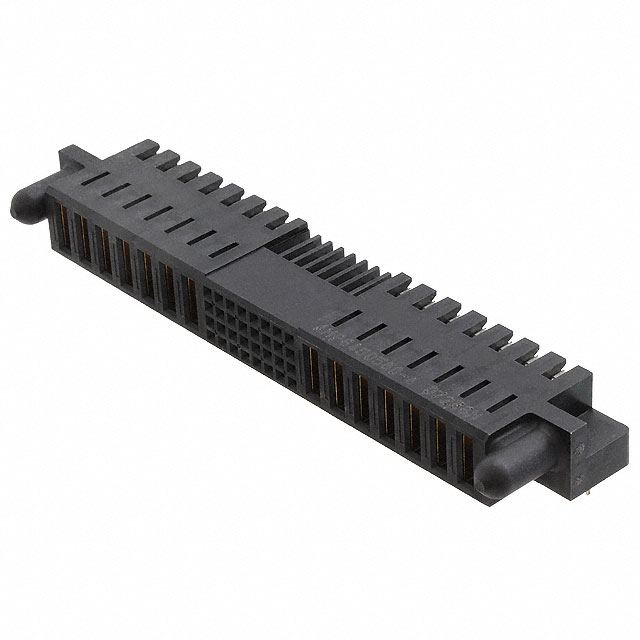

TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 6450560-4, features a right-angle, through-hole mounting configuration for PCB integration. This black connector offers 46 positions with a 0.100" (2.54mm) pitch, comprising 32 signal and 14 power contacts. Designed for demanding applications, it incorporates board lock and guide pin features for enhanced mechanical stability and alignment. The MULTI-BEAM XL receptacle utilizes press-fit termination for reliable, solderless connections. This component is widely utilized in high-density power and signal applications across industries such as telecommunications, data centers, and industrial automation. Supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 46 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 32 Signal, 14 Power |
| Number of Columns | - |
