6450551-9
CONN RCPT MULTI-BEAM 21POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

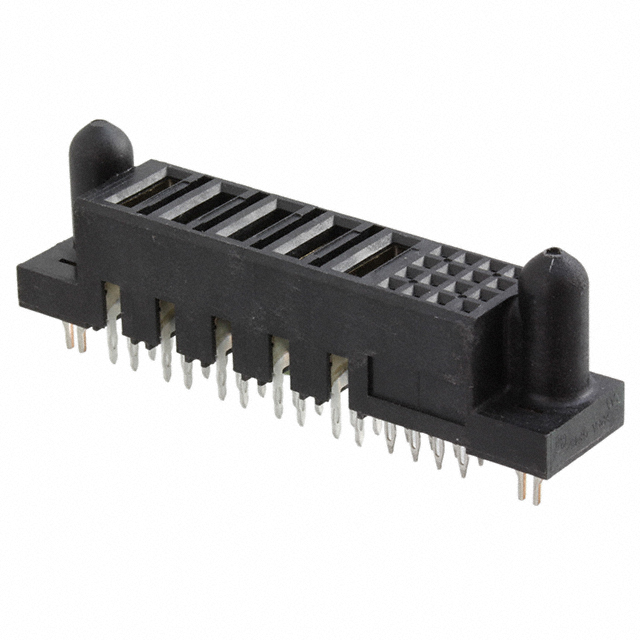

TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 6450551-9, offers a robust solution for high-density power and signal applications. This 21-position receptacle features female sockets and blade sockets with a through-hole mounting style and press-fit termination. The black housing is designed for reliable performance, with a gold contact finish boasting a 30.0µin thickness. Its typical contact layout includes 16 signal and 5 power positions, accommodating all 21 positions loaded. Key features include board lock and guide pin for secure mating and proper alignment. This component is commonly utilized in telecommunications, industrial automation, and high-performance computing environments where reliable power delivery and signal integrity are critical.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 21 |
| Pitch | - |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 5 Power |
| Number of Columns | - |
