6450378-3
CONN RCPT MULTI-BEAM 33POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

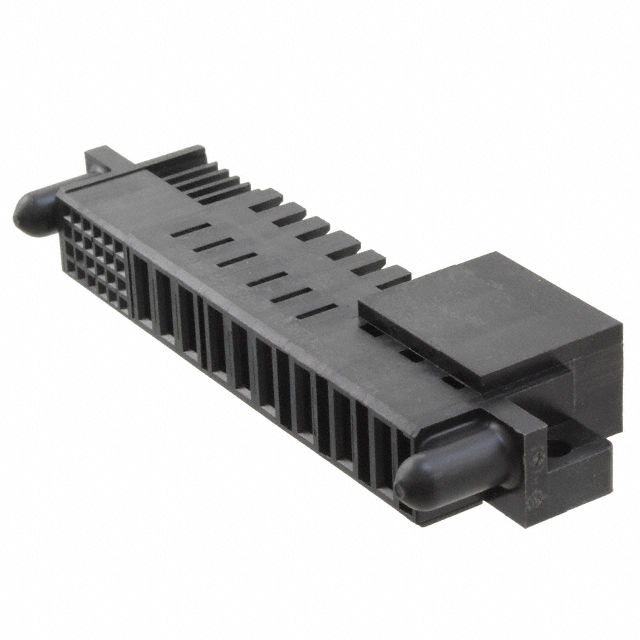

TE Connectivity AMP Connectors MULTI-BEAM XL Series 6450378-3 is a 33-position right-angle receptacle designed for PCB mounting. This connector features a through-hole termination with a 0.100" (2.54mm) pitch. The contact layout includes 24 signal positions and 9 power positions. It utilizes a multi-beam connector style with female sockets and blade sockets, incorporating a guide pin for enhanced mating reliability. This component is supplied in tray packaging and is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | - |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 33 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 24 Signal, 9 Power |
| Number of Columns | - |
