6450162-6
CONN RCPT MULTI-BEAM 24POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

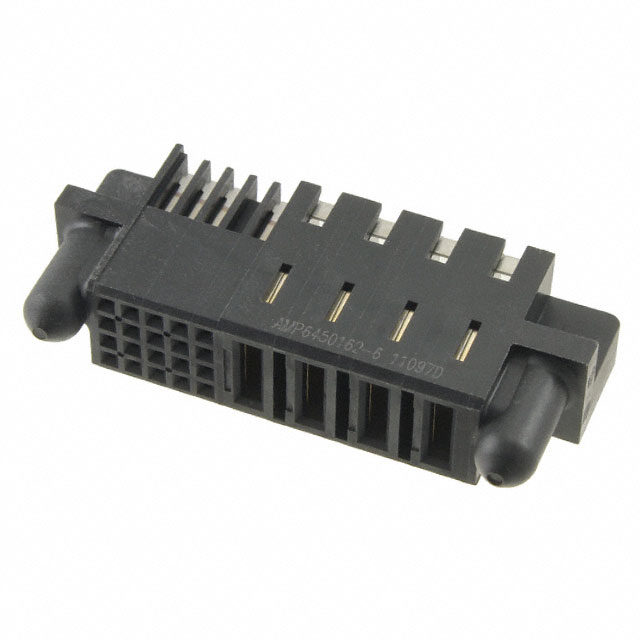

TE Connectivity AMP Connectors presents the MULTI-BEAM XL series connector, part number 6450162-6. This 24-position receptacle features a right-angle, through-hole mounting style and a black housing. Designed for robust power and signal delivery, it incorporates a 4-row configuration with 20 signal contacts and 4 power contacts. The connector utilizes a 0.100" (2.54mm) pitch and terminates via solder. Key features include board lock and guide pin for enhanced assembly and retention. This component is widely utilized in demanding applications within the industrial, automotive, and telecommunications sectors where high-density interconnectivity and reliability are paramount.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Box |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 20 Signal, 4 Power |
| Number of Columns | - |
