6450152-1
CONN RCPT MULTI-BEAM 46POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

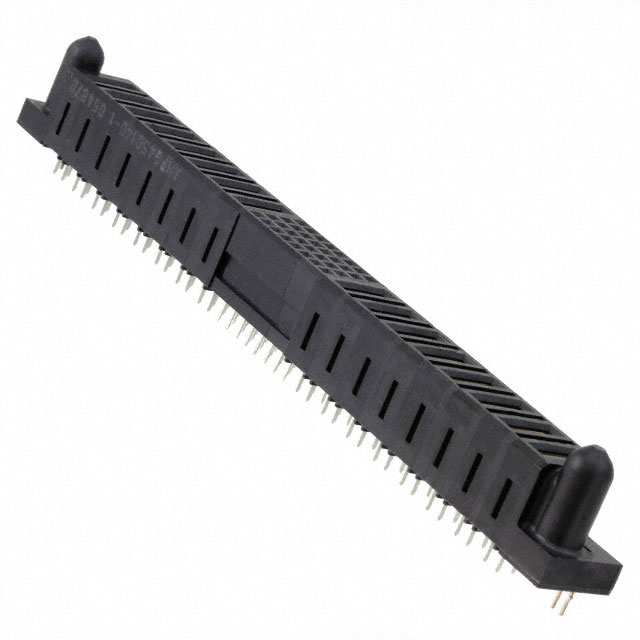

TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 6450152-1, offers a robust 46-position solution for high-density interconnection. This through-hole mounted receptacle features female sockets and blade sockets with a 0.100" (2.54mm) pitch. It is configured with 32 signal and 14 power positions, all loaded, and incorporates essential features such as board lock and guide pins for secure assembly. The gold contact finish, with a thickness of 30.0µin (0.76µm), ensures reliable conductivity and durability. This component is commonly utilized in power distribution systems, telecommunications infrastructure, and high-performance computing applications where reliable, high-current, and high-signal density connections are critical. Packaged in bulk, it is designed for efficient integration into complex PCB assemblies.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 46 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Signal, 14 Power |
| Number of Columns | - |
