6450128-5
CONN HEADER MULTI-BEAM 32POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

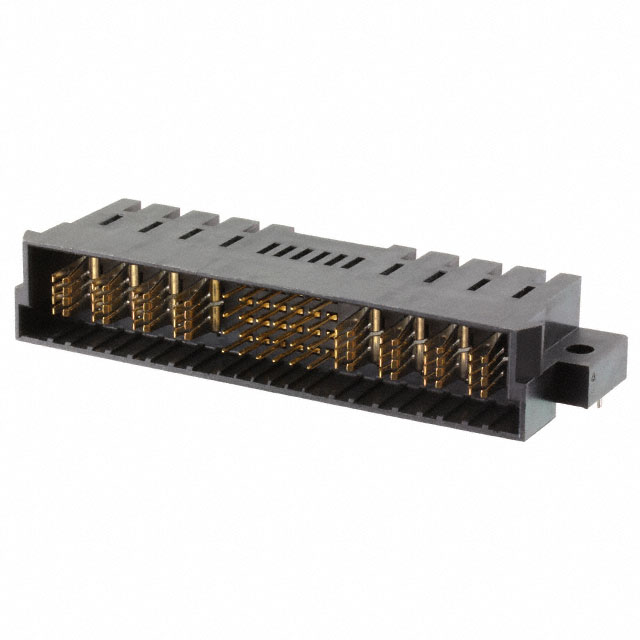

TE Connectivity AMP Connectors MULTI-BEAM XL series connector, part number 6450128-5, is a 32-position right-angle header designed for PCB mounting. This through-hole component features male pins and blades with a 0.100" (2.54mm) pitch. The contact finish is gold with a thickness of 30.0µin (0.76µm). It offers a robust design with features such as board lock and latches, supporting a flexible contact layout typically configured for 24 signal and 8 power contacts. This connector is commonly utilized in high-density interconnect applications within the datacom and industrial sectors.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Latches |
| Packaging | Box |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 32 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 8 Power |
| Number of Columns | - |
