6450120-1
CONN HEADER MULTI-BEAM 48POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

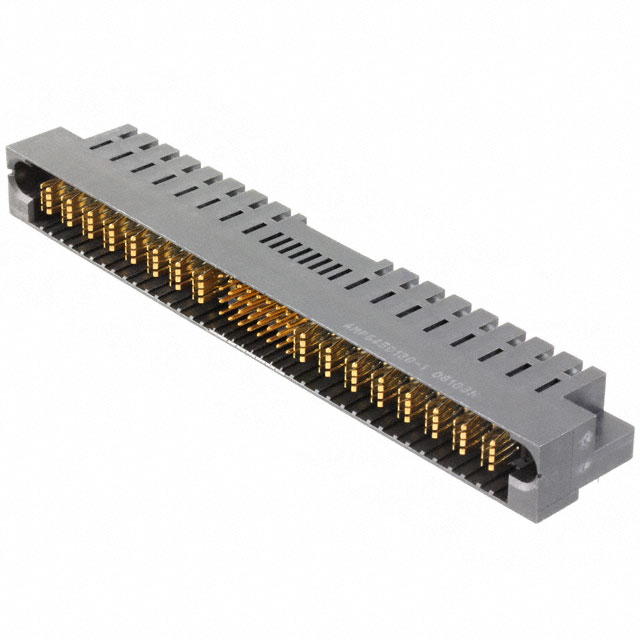

TE Connectivity AMP Connectors MULTI-BEAM XL series connector, part number 6450120-1. This 48-position right-angle header features male pins and blades for through-hole mounting on PCBs. Designed with a 0.100" (2.54mm) pitch, it offers a robust connection solution. The contact finish is gold with a thickness of 30µin (0.76µm). This component includes a typical layout of 32 signal and 16 power contacts, along with board lock and mating guide features for reliable assembly. Supplied in bulk packaging, this connector is suitable for high-density power and signal applications commonly found in enterprise computing, data center, and industrial automation systems.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Signal, 16 Power |
| Number of Columns | - |
