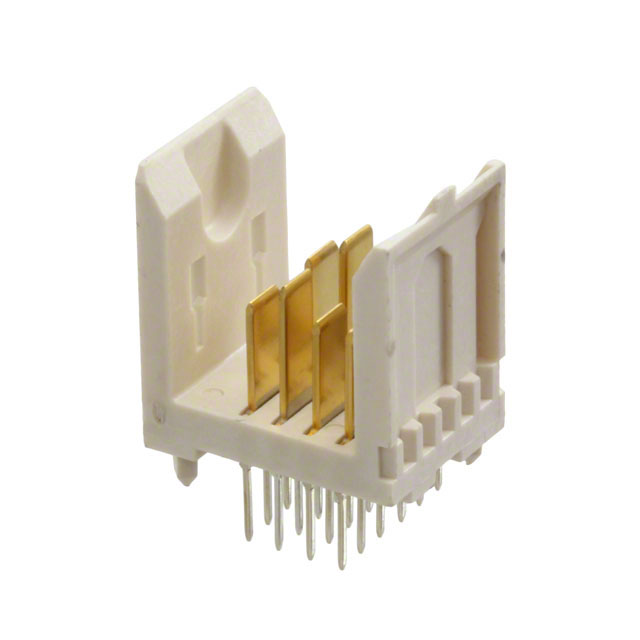

536627-1
CONN HEADER FUTUREBUS 8POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors Z-PACK series connector, part number 536627-1, is an 8-position PCB header designed for through-hole mounting. This Futurebus style connector features male blades with a gold contact finish, specifically FLASH thickness, ensuring reliable electrical performance. The component is presented in a natural color and accommodates all 8 positions loaded across 4 rows, with a pitch of 0.236 inches (6.00mm). This high-density connector is suitable for demanding applications within the telecommunications and computing industries, offering robust signal integrity and power delivery. The design includes a board guide for enhanced assembly and proper alignment during PCB integration. Termination is achieved via solder.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Pitch | 0.236"" (6.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | FLASH |
| Contact Layout, Typical | 8 Power |
| Number of Columns | - |
