536607-1
CONN RCPT FUTUREBUS 8POS EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

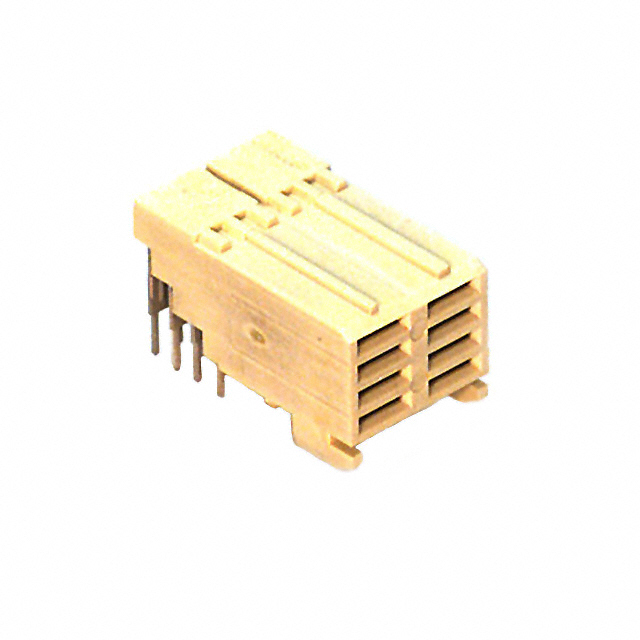

TE Connectivity AMP Connectors Z-PACK series receptacle, part number 536607-1, is an 8-position female blade socket connector designed for board edge, through-hole, right-angle mounting. This Futurebus connector features gold contact finish with a flash thickness, ensuring reliable signal integrity. Its construction includes a board guide and spacer for enhanced mechanical stability during assembly and operation. The receptacle is configured with 4 rows and all 8 positions loaded, suitable for applications requiring robust power connections. Commonly utilized in telecommunications and industrial computing systems, this component offers a 0.236" (6.00mm) pitch and solder termination for secure integration into printed circuit boards. It is supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 8 |
| Pitch | 0.236"" (6.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | FLASH |
| Contact Layout, Typical | 8 Power |
| Number of Columns | - |
