536600-1
CONN HEADER FUTUREBUS 8POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

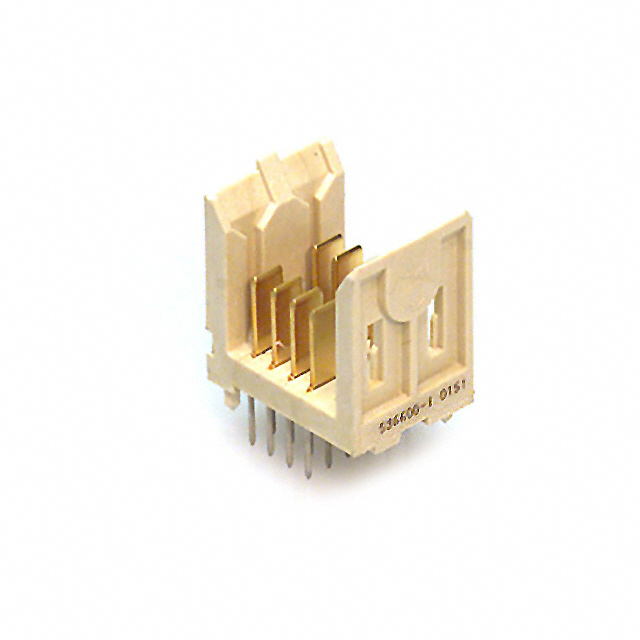

TE Connectivity AMP Connectors Z-PACK series CONN HEADER FUTUREBUS 8POS PCB, part number 536600-1, is an 8-position male blade header designed for PCB mounting. Featuring a through-hole termination with a solderable connection and gold contact finish with a flash thickness, this connector facilitates reliable signal and power transmission. The Futurebus connector style with a 4-row configuration and board guide ensures robust mechanical and electrical performance. This component is commonly utilized in telecommunications, data processing, and industrial automation sectors requiring high-density interconnect solutions. Packaged in a tube, it offers efficient handling for high-volume manufacturing.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Pitch | - |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | FLASH |
| Contact Layout, Typical | 8 Power |
| Number of Columns | - |
