536540-1
CONN HEADER FUTUREBUS 24POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

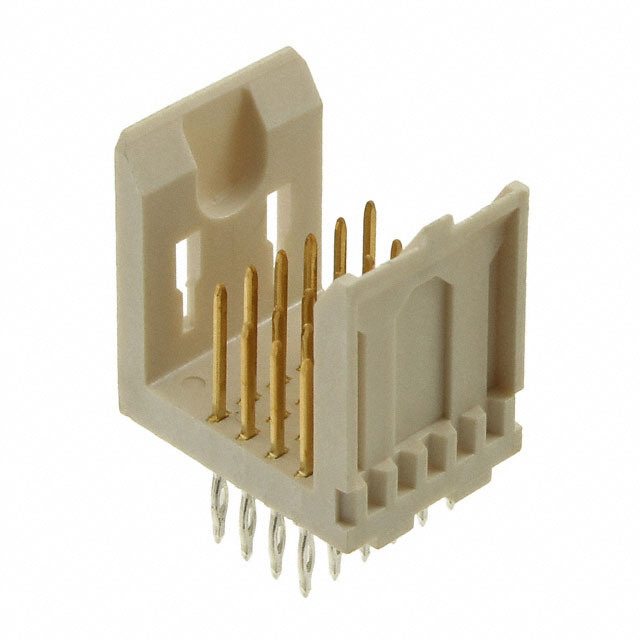

TE Connectivity AMP Connectors Z-PACK series header, part number 536540-1, is a 24-position, 4-row male pin connector designed for PCB mounting. This Futurebus-style connector features gold contact finish for reliable signal integrity. The through-hole mounting and press-fit termination facilitate robust connections in demanding applications. Its natural color and tube packaging are standard for efficient integration into automated assembly processes. This component is commonly utilized in telecommunications infrastructure, high-speed computing systems, and industrial automation equipment where dependable signal transmission and mechanical stability are critical.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | - |
| Contact Layout, Typical | - |
| Number of Columns | - |
