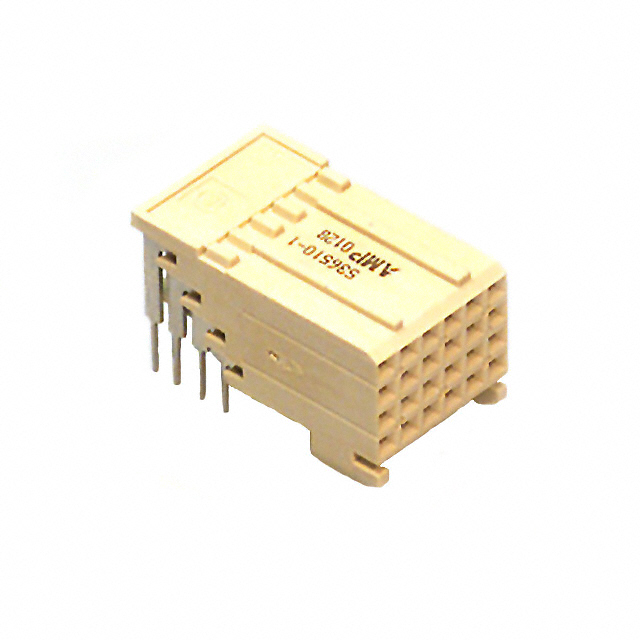

536510-1
CONN RCPT FUTUREBUS 24P EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
The TE Connectivity AMP Connectors Z-PACK Series connector, part number 536510-1, is a 24-position receptacle designed for board edge mounting. Featuring a right-angle, through-hole termination, this component utilizes female sockets with a natural color and a gold contact finish. Its Futurebus connector style is complemented by features such as a board guide and spacer, facilitating precise alignment during assembly. This receptacle is suitable for applications within telecommunications and data processing equipment. The 2.00mm pitch and through-hole mounting ensure robust mechanical and electrical connections. Packaged in a tube, this component is engineered for high-performance interconnect solutions.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 24 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | - |
| Contact Layout, Typical | - |
| Number of Columns | - |
