536507-4
CONN RCPT FUTUREBUS 192P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

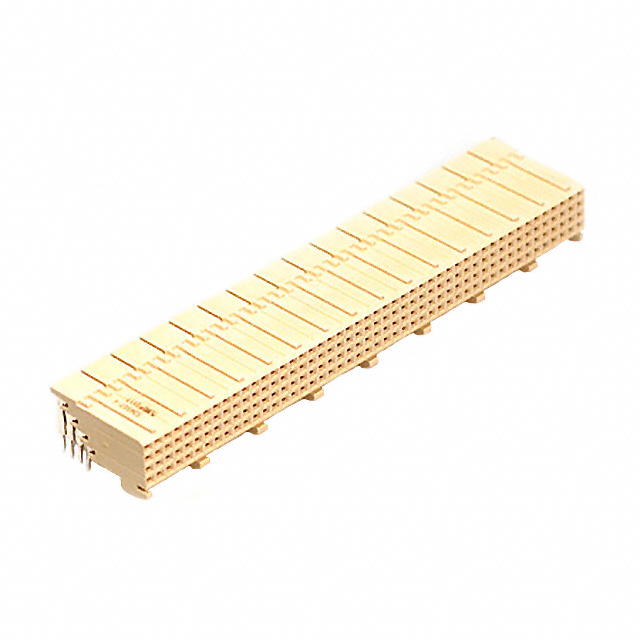

TE Connectivity AMP Connectors Z-PACK Series receptacle connector, part number 536507-4. This Futurebus connector features 192 positions with female sockets, arranged in 4 rows. The right-angle, through-hole mounting design is intended for board edge termination with a 0.079" (2.00mm) pitch. It includes board guide and spacer features for enhanced assembly. The contact finish is gold. This component is commonly utilized in telecommunications and data processing equipment. Supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 192 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | - |
| Contact Layout, Typical | - |
| Number of Columns | - |
