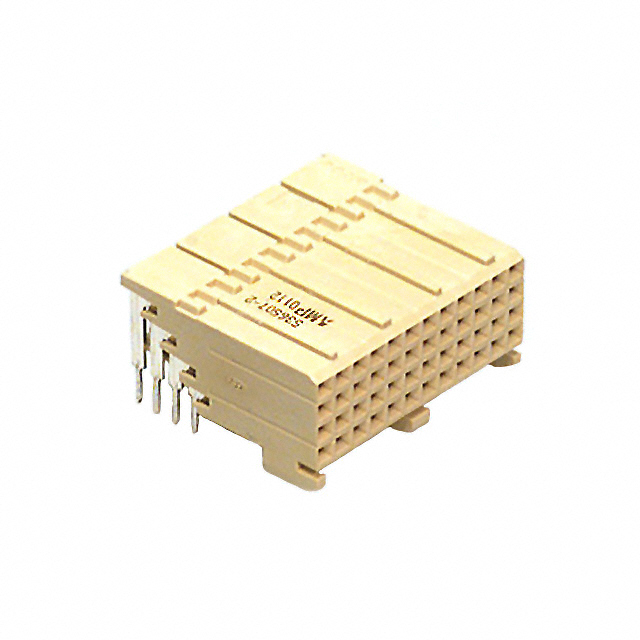

536507-2
CONN RCPT FUTUREBUS 48P EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors Z-PACK series 536507-2 is a 48-position receptacle designed for board edge mounting. This Futurebus connector features through-hole, right-angle termination with a 2.00mm pitch and a natural color. The receptacle utilizes female sockets with a gold contact finish for reliable connectivity. Key features include integrated board guides and spacers to facilitate proper alignment and assembly. This component is suitable for high-density interconnect applications in industries such as telecommunications and computing. The product is supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 48 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | - |
| Contact Layout, Typical | - |
| Number of Columns | - |
