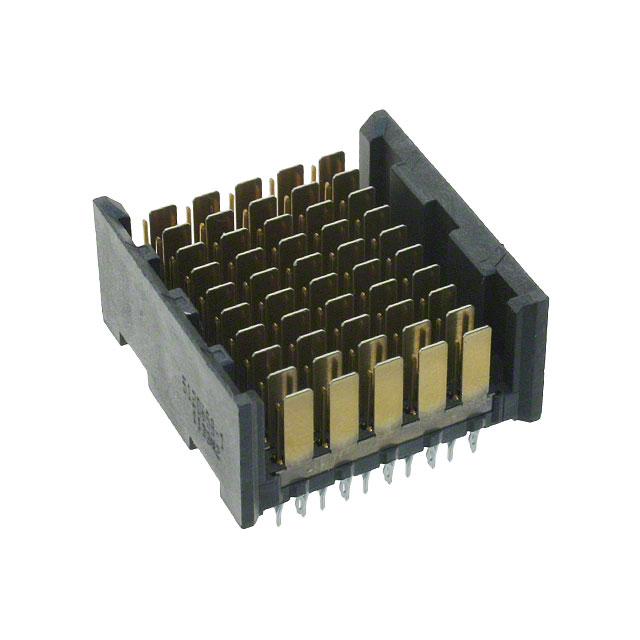

5120658-1
CONN HEADER DUAL BEAM 100POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
100 Connector Header, Male Pins and Blades Through Hole Dual Beam, Center
Additional Information
Series: Z-PACK HS3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Pitch | 0.098"" (2.50mm) |
| Number of Rows | 10 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Dual Beam, Center |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | 10 |
