5-6450830-9
CONN HEADER MULTI-BEAM 32POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

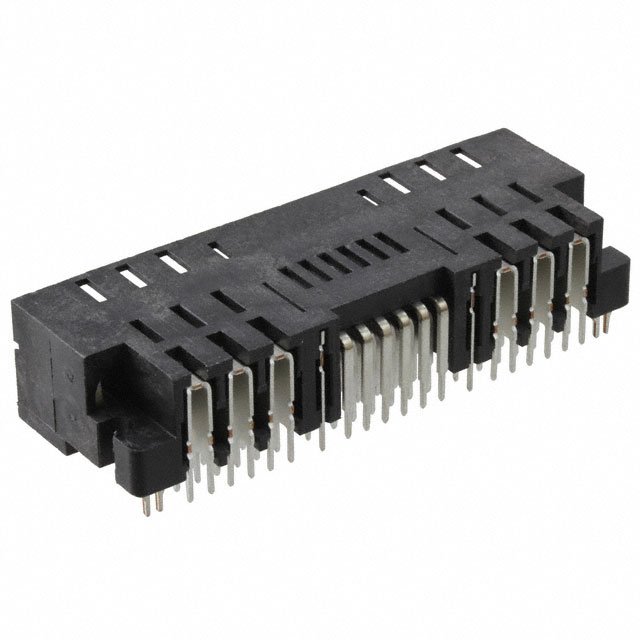

TE Connectivity AMP Connectors MULTI-BEAM XLE series connector header, part number 5-6450830-9, is a 32-position, 4-row, right-angle, through-hole component. This header features male pins and blades for electrical connection, with a 0.100" (2.54mm) pitch. It is designed with a mating guide for simplified assembly and robust interconnectivity. The contact layout includes 24 signal positions and 8 power positions, all loaded. Termination is achieved via solder. This high-density connector is utilized in demanding applications across industries such as telecommunications, data communications, and industrial automation where reliable power and signal delivery is critical. It is supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | - |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 32 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 24 Signal, 8 Power |
| Number of Columns | - |
