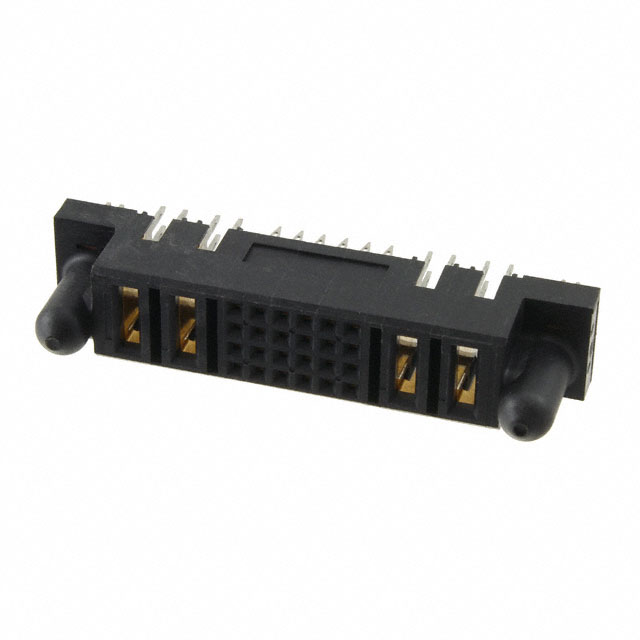

5-6450540-9
CONN RCPT MULTI-BEAM 28POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 5-6450540-9, offers a robust connectivity solution for high-density applications. This 28-position receptacle features a 4-row configuration with a 0.100" (2.54mm) pitch, designed for through-hole mounting with press-fit termination. The connector incorporates both female sockets and blade sockets, providing versatile interconnect capabilities. Its contact finish utilizes 30.0µin (0.76µm) of gold for enhanced conductivity and durability. Optimized for demanding environments, this component includes board lock and guide pin features for secure and reliable mating. The 5-6450540-9 is suitable for power and signal applications, with a typical layout of 24 signal and 4 power contacts. This receptacle is commonly employed in telecommunications, data processing, and industrial automation sectors. Packaged in trays for efficient handling.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 4 Power |
| Number of Columns | - |
