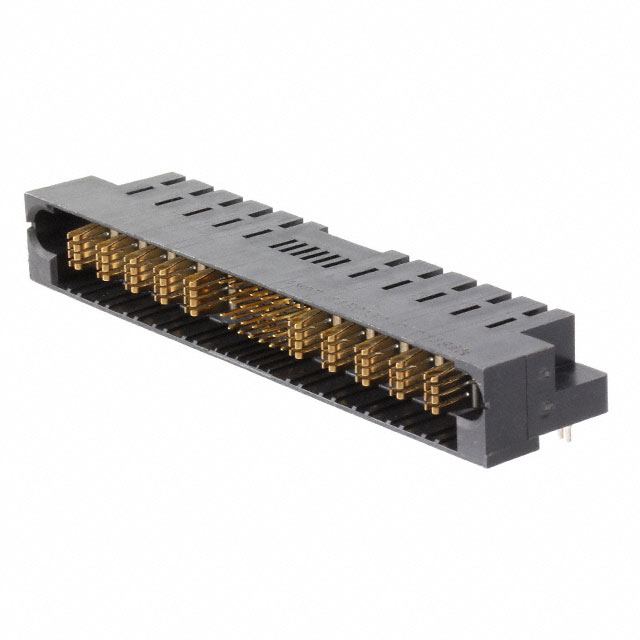

5-6450130-0
CONN HDR MULTI-BEAM 34POS PNL MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series connector, part number 5-6450130-0, is a 34-position male header designed for panel mounting with through-hole termination. This robust connector features a 2.54mm pitch and is equipped with gold contact plating, specified at 30.0µin (0.76µm) for enhanced conductivity and durability. The contact layout includes 24 signal and 10 power positions, supporting high-density interconnects. Key features such as a board lock and mating guide facilitate secure and reliable connections in demanding applications. This component is widely utilized in industrial automation, telecommunications infrastructure, and high-performance computing systems where dependable power and signal delivery are critical. The MULTI-BEAM XL architecture is engineered for high current capacity and signal integrity.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 34 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 10 Power |
| Number of Columns | - |
