5-6450120-8
CONN HEADER MULTI-BEAM 30POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

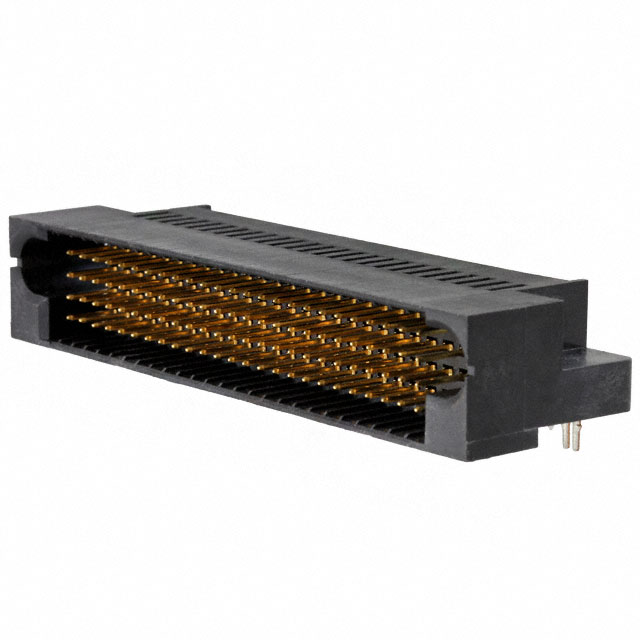

TE Connectivity AMP Connectors MULTI-BEAM XL series header, part number 5-6450120-8, offers a robust 30-position, right-angle, through-hole solution. This male pin and blade header features a 2.54mm pitch and is designed with a 4-row configuration. The contacts are finished with 30.0µin (0.76µm) gold plating for superior conductivity and durability. Key features include board lock functionality and mating guides to ensure proper alignment and secure connection. The contact layout is typically configured for 24 signal and 6 power contacts, supporting high-density interconnect applications. This component is commonly utilized in demanding industries such as telecommunications, data centers, and industrial automation where reliable power and signal delivery is critical. Packaging is supplied in trays.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 6 Power |
| Number of Columns | - |
