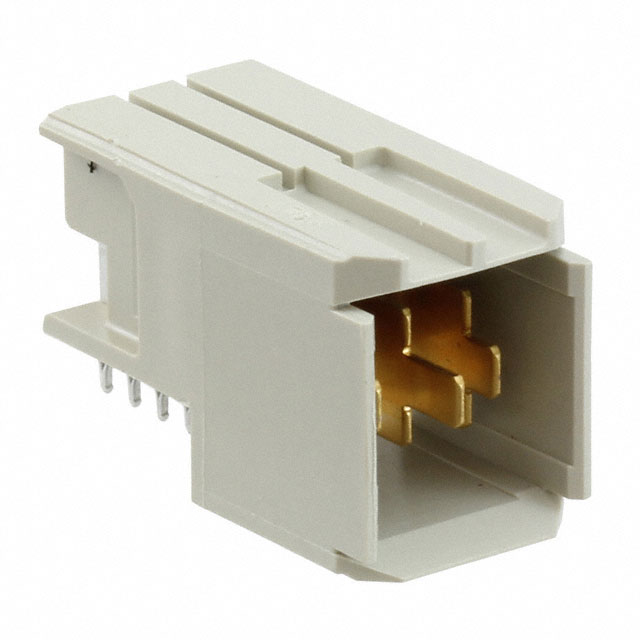

5-5223963-1
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
3 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Gray Blade Power
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Blade Power |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
