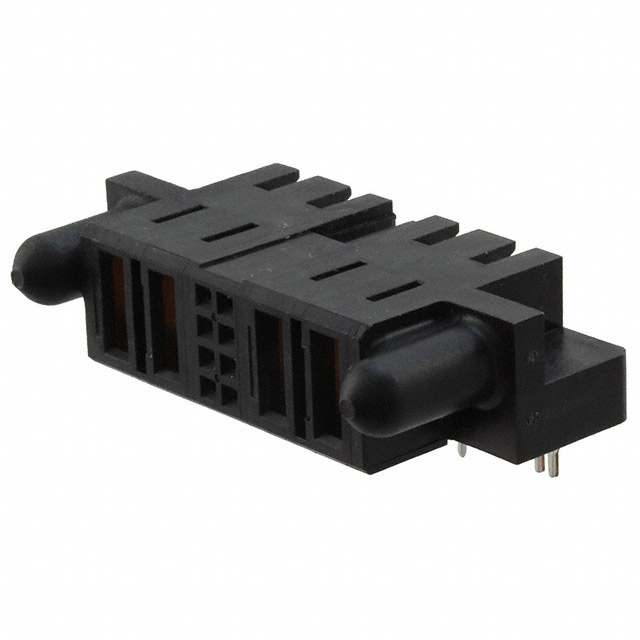

CONN RCPT MULTI-BEAM 12POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 3-6450170-5, is a 12-position, right-angle, through-hole connector designed for PCB mounting. This receptacle features female sockets and blade sockets with a 0.100" (2.54mm) pitch. The contact finish is gold with a thickness of 30.0µin (0.76µm). It supports an 8 signal and 4 power contact layout, configurable with board lock and guide pin features. The MULTI-BEAM XL connector family is engineered for high-density power and signal applications, finding use in demanding sectors such as telecommunications, data centers, and industrial automation. This component is supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 8 Signal, 4 Power |
| Number of Columns | - |
