3-205508-1
CONN RCPT 14POS PNL MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

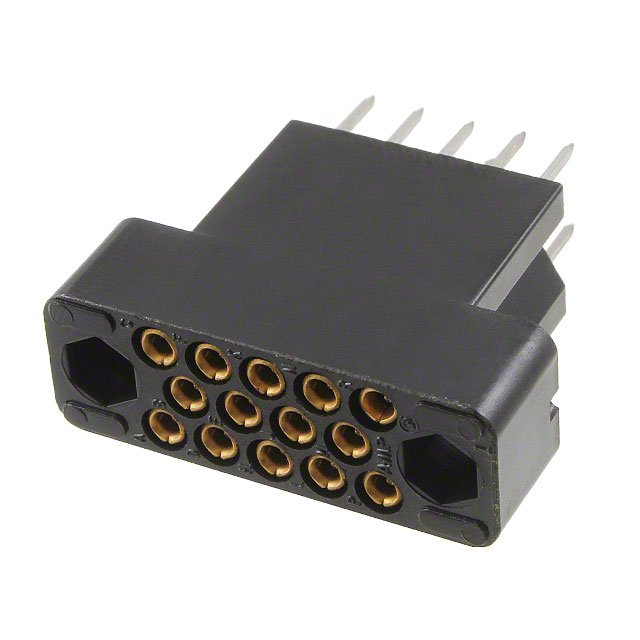

TE Connectivity AMP Connectors M Series 3-205508-1 is a 14-position receptacle with female sockets designed for panel mounting. This component features a black housing and a mating guide for accurate alignment. The gold-plated contacts, with a thickness of 30.0µin (0.76µm), ensure reliable connectivity. The receptacle is configured with 3 rows and all 14 positions are loaded. Termination is achieved via wire wrap technology. This component is commonly found in industrial automation, medical equipment, and telecommunications applications.
Additional Information
Series: MRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Panel Mount |
| Number of Positions | 14 |
| Pitch | 0.150"" (3.81mm) |
| Number of Rows | 3 |
| Number of Positions Loaded | All |
| Termination | Wire Wrap |
| Connector Usage | - |
| Connector Style | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
