2343044-1
VERICAL PLUG ASSEMBLY, MULTI-BEAManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

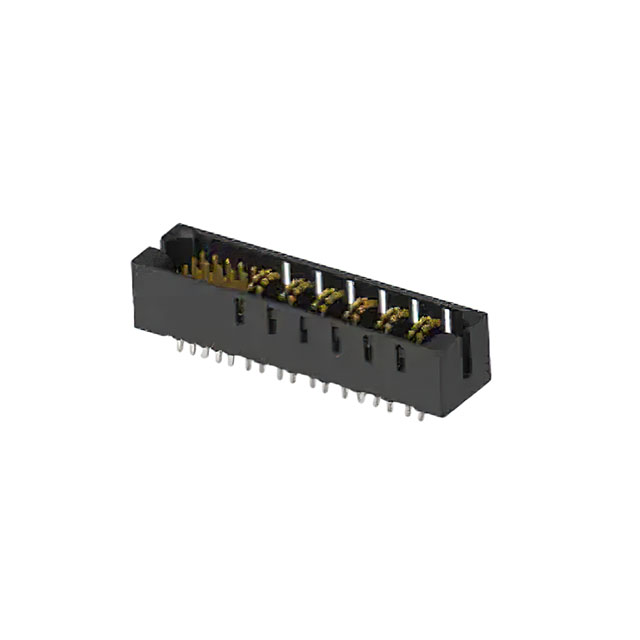

TE Connectivity AMP Connectors MULTI-BEAM XLE vertical plug assembly, part number 2343044-1, is a 26-position male connector featuring gold-plated contacts for enhanced conductivity and durability. This through-hole mounted component utilizes a press-fit termination method and includes a guide pin for precise mating. The black housing is designed for a 4-row configuration, with a standard 0.100" (2.54mm) pitch, supporting 20 signal and 6 power contacts. The MULTI-BEAM XLE series is engineered for high-density power and signal connectivity, finding application in demanding sectors such as telecommunications, data centers, and industrial automation where reliable, high-performance interconnects are critical. Supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLERoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Plug, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 20 Signal, 6 Power |
| Number of Columns | - |
