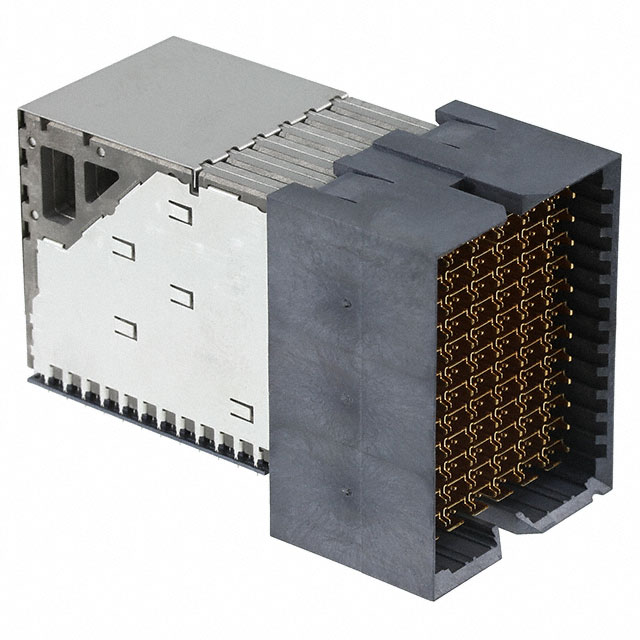

2274518-1
CONN HDR DUAL BEAM 144P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
144 Connector Header, Male Pins and Blades Board Edge, Through Hole, Right Angle Dual Beam, Center
Additional Information
Series: STRADA WhisperRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Palladium-Nickel |
| Color | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 144 |
| Pitch | 0.154"" (3.90mm) |
| Number of Rows | 12 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane, Orthogonal |
| Connector Style | Dual Beam, Center |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | 6 |
