223995-3
CONN RCPT BLADE PWR 6POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

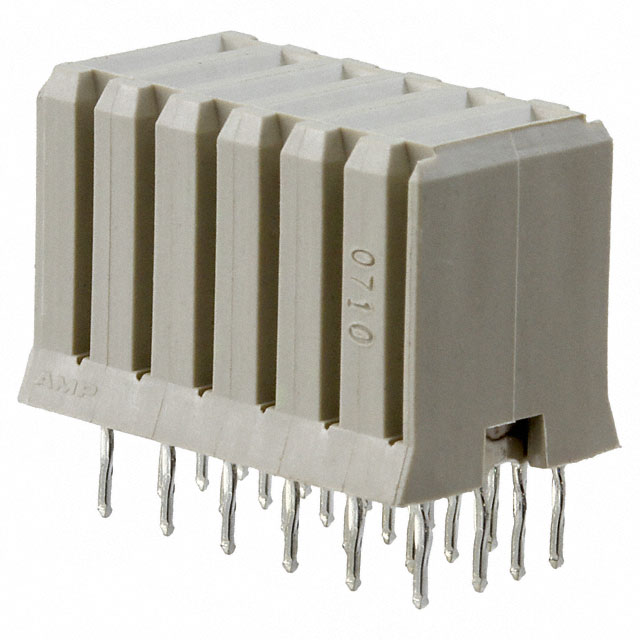

TE Connectivity AMP Connectors UPM Series receptacle connector, part number 223995-3, is designed for high-density power applications. This 6-position, single-row receptacle features female blade sockets with a through-hole mounting type and a gray housing. The connector usage is specified for backplane applications, ensuring robust connectivity in demanding environments. Termination is achieved via a press-fit method, facilitating efficient assembly. The contact finish is gold or gold-palladium, providing excellent conductivity and corrosion resistance. This component is integral to power distribution within industrial automation, telecommunications infrastructure, and high-performance computing systems.
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold or Gold-Palladium |
| Color | Gray |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Pitch | - |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Blade Power |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 6 Power |
| Number of Columns | - |
