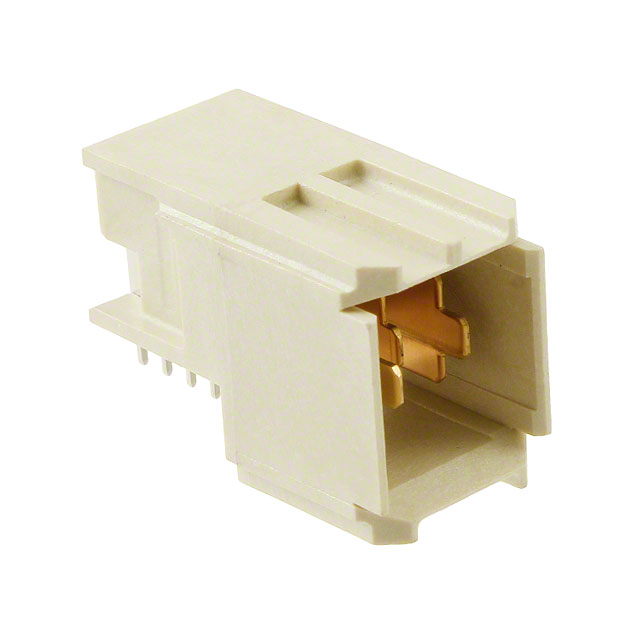

223971-1
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors UPM (Universal Power Modules) series offers the 223971-1, a 3-position male blade power connector header. Designed for robust power distribution, this right-angle, through-hole mounted component features gold-plated contacts with a 50µin (1.27µm) finish for enhanced conductivity and durability. The connector utilizes a press-fit termination for secure board attachment and includes a board guide for precise alignment. Its gray blade power connector style is suitable for high-current applications across industries such as automotive, industrial automation, and power supplies. The component is supplied in tube packaging.
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Blade Power |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
