223963-1
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

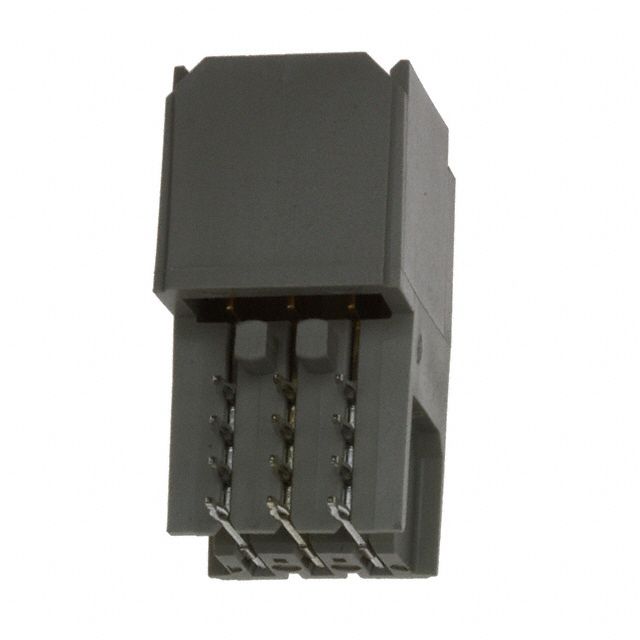

TE Connectivity AMP Connectors UPM (Universal Power Modules) series header, part number 223963-1, is a 3-position male blade power connector designed for board edge, through-hole, right-angle mounting. This gray header features a press-fit termination and a gold or gold-palladium contact finish for robust power delivery. Its connector usage targets backplane applications, and it includes a board guide for enhanced assembly. This component is suitable for high-power density applications across various industries, including telecommunications, data centers, and industrial automation where reliable, high-current interconnects are critical.
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold or Gold-Palladium |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Blade Power |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
