223962-1
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

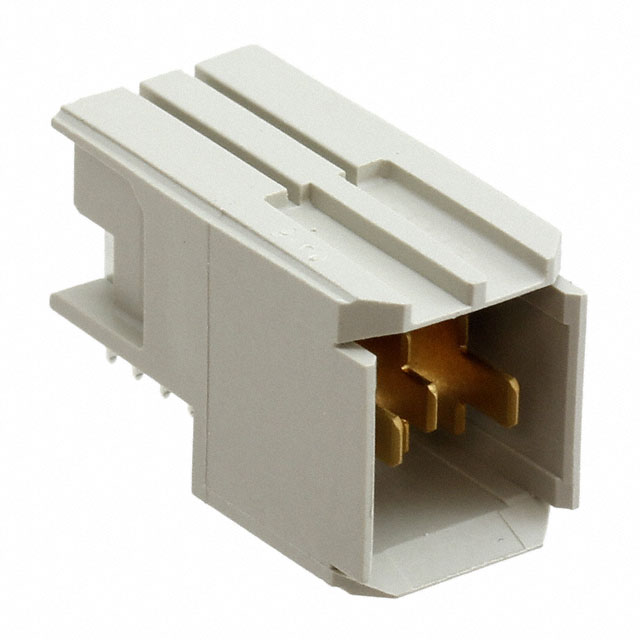

TE Connectivity AMP Connectors UPM Series 3-position right-angle board edge header, part number 223962-1. This male blade power connector features a through-hole mounting type for board edge applications, with a gray blade power connector style. The connector usage is specified for backplane applications, and it utilizes press-fit termination. Contact finish is Gold or Gold-Palladium. This component is designed for high-density power interconnects, commonly found in telecommunications, data centers, and industrial automation equipment. The robust construction and reliable termination method ensure high performance in demanding environments.
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold or Gold-Palladium |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Blade Power |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
