223961-8
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

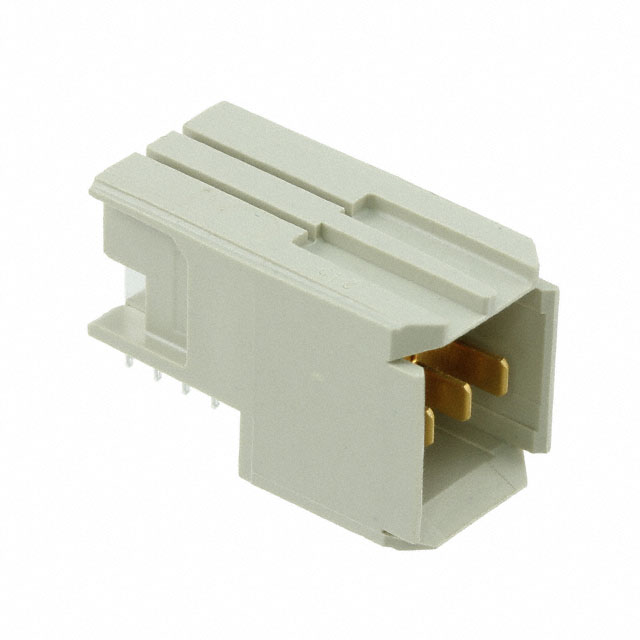

TE Connectivity AMP Connectors UPM (Universal Power Modules) series right-angle male blade power header, part number 223961-8. This 3-position connector features gold-plated contacts with a thickness of 50.0µin (1.27µm) for enhanced conductivity and durability. Designed for board edge mounting with a through-hole, right-angle termination, it utilizes a press-fit method for secure connection. The connector's gray blade power style and integrated board guide facilitate robust assembly. This component is typically employed in backplane applications within industries such as telecommunications, data centers, and industrial automation, where high-density power delivery and reliable interconnects are critical. Packaged in a tube for efficient handling.
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Blade Power |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
