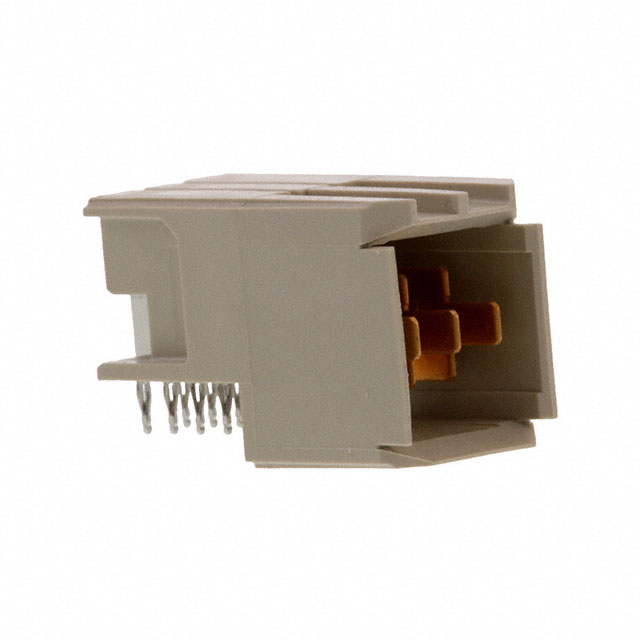

223961-1
CONN HEADER BLADE PWR 3P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors UPM (Universal Power Modules) Series 223961-1 is a 3-position, right-angle, board-edge mount header designed for high-density power applications. This male blade power connector features a through-hole termination method and a press-fit capability for robust board mounting. The connector is housed in a gray color and utilizes gold or gold-palladium contact finish for superior conductivity and durability. Its design is optimized for backplane connectivity, enabling efficient power distribution in demanding environments. This component is integral to power solutions within the telecommunications, industrial automation, and computing industries, where reliable and high-current connections are essential.
Additional Information
Series: UPM (Universal Power Modules)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold or Gold-Palladium |
| Color | Gray |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 3 |
| Pitch | - |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Blade Power |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 3 Power |
| Number of Columns | - |
