223055-2
CONN HEADER FUTUREBUS 60POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

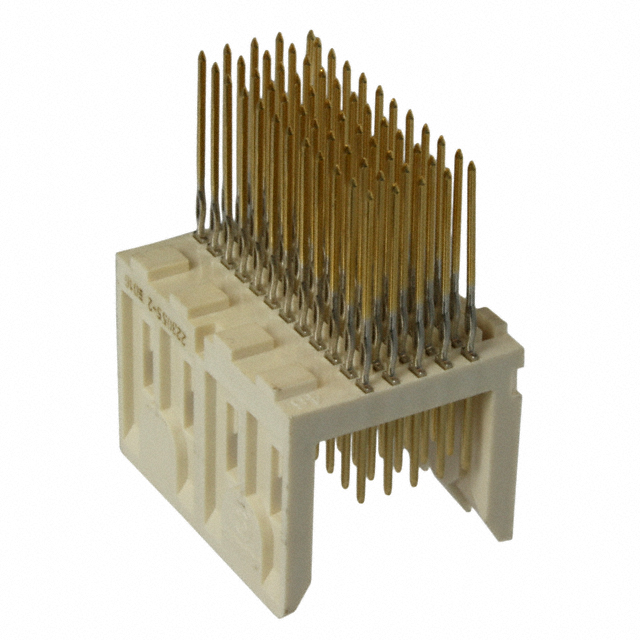

TE Connectivity AMP Connectors Z-PACK Series header, part number 223055-2, is a 60-position Futurebus connector designed for PCB mounting. This male pin header features a through-hole termination style with a 0.079" (2.00mm) pitch. The natural colored housing contains five rows of contacts, all loaded, with a gold contact finish boasting a thickness of 30.0µin (0.76µm). This component is suitable for applications in telecommunications and data networking infrastructure. The header utilizes press-fit termination for robust connection.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
