223008-1
CONN RCPT FUTUREBUS 30P EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

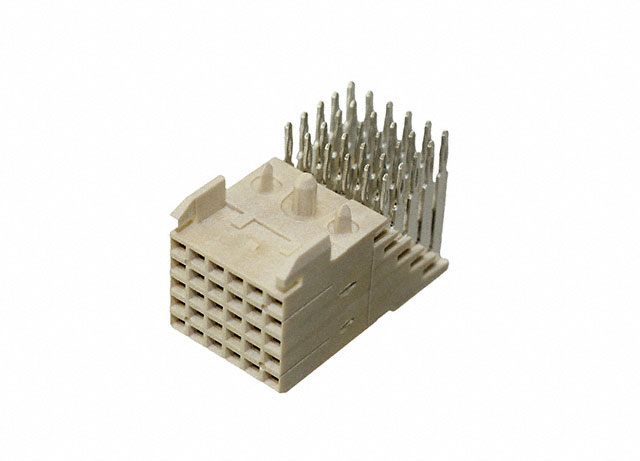

TE Connectivity AMP Connectors Z-PACK series receptacle, part number 223008-1, is a 30-position, 5-row Futurebus connector. This right-angle, board edge mount component features through-hole termination with a press-fit engagement. The female sockets are designed for a 0.079" (2.00mm) pitch and offer a gold contact finish with a thickness of 30.0µin (0.76µm). Key features include board guides and spacers for enhanced mounting stability. This component is suitable for applications in telecommunications and high-speed computing. It is supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Spacer |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 30 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
