223007-2
CONN RCPT FUTUREBUS 60P EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

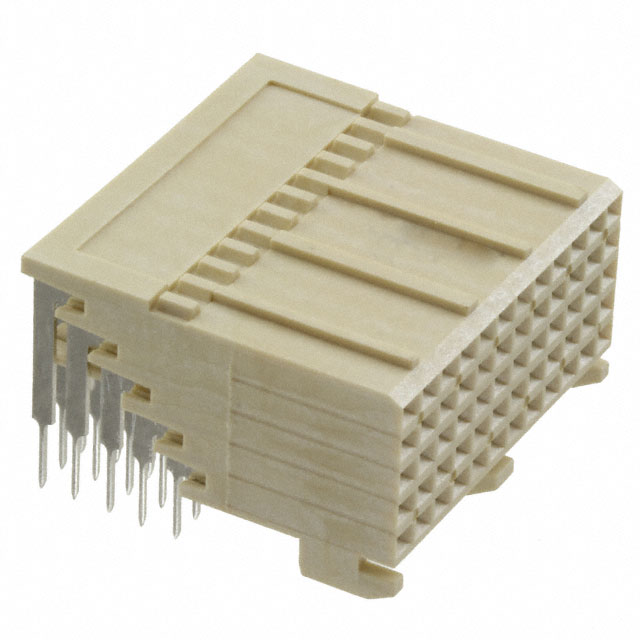

TE Connectivity AMP Connectors Z-PACK series receptacle, part number 223007-2, is a 60-position female socket connector designed for board edge mounting. This right-angle, through-hole component features a natural color and utilizes the Futurebus connector style. The contact finish is gold, ensuring reliable conductivity. Manufactured by TE Connectivity AMP Connectors, this receptacle is suitable for high-density interconnect applications and is commonly found in telecommunications, networking, and computing infrastructure. The connector is packaged in a tube and has a pitch of 0.079" (2.00mm). It is designed with 5 rows and all 60 positions are loaded, incorporating board guide features for enhanced mating stability. Termination is achieved via solder.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 60 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | - |
| Contact Layout, Typical | - |
| Number of Columns | - |
