223000-4
CONN HEADER FUTUREBUS 120POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

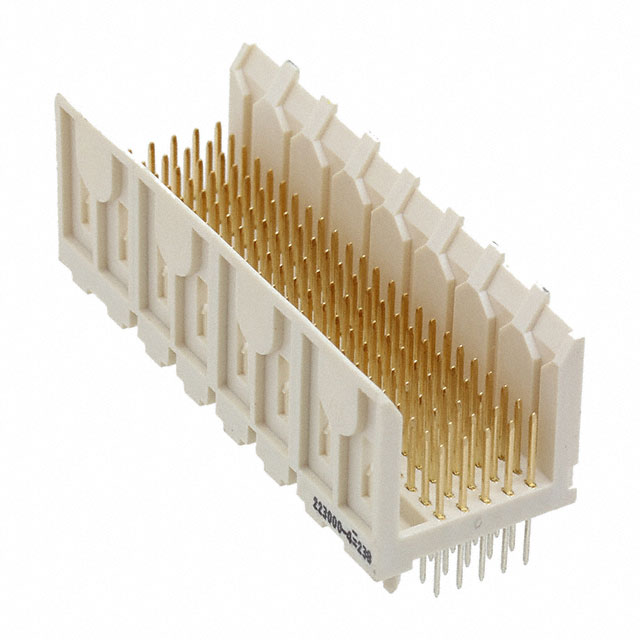

TE Connectivity AMP Connectors Z-PACK Series 223000-4 is a 120-position, 5-row Futurebus connector header designed for PCB mounting. This male pin header features a through-hole termination with a 0.079" (2.00mm) pitch. The natural color housing provides a robust connection solution, and the gold contact finish, with a thickness of 30.0µin (0.76µm), ensures reliable electrical performance. This component is typically utilized in telecommunications and computing infrastructure applications requiring high-density, high-speed interconnects. The design includes board guide features for enhanced assembly.
Additional Information
Series: Z-PACKRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 120 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
