223000-3
CONN HEADER FUTUREBUS 90POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

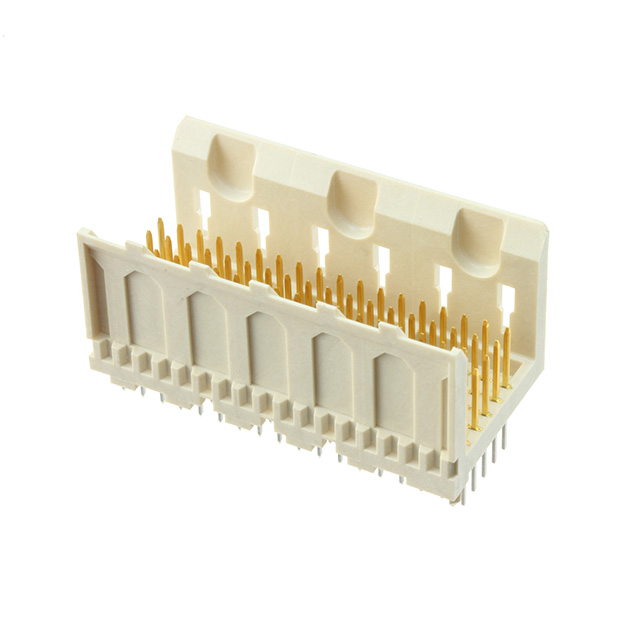

TE Connectivity AMP Connectors Z-PACK series header, part number 223000-3, is a 90-position male pin connector designed for PCB mounting. This Futurebus style connector features a through-hole termination with a 0.079" (2.00mm) pitch and gold contact finish with a 30.0µin (0.76µm) thickness. The natural colored housing includes board guide features for enhanced assembly. This component is commonly utilized in telecommunications and high-speed computing applications.
Additional Information
Series: Z-PACKRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 90 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Futurebus |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
