2212041-1
CONN RCPT MINI-DRAWER 22POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

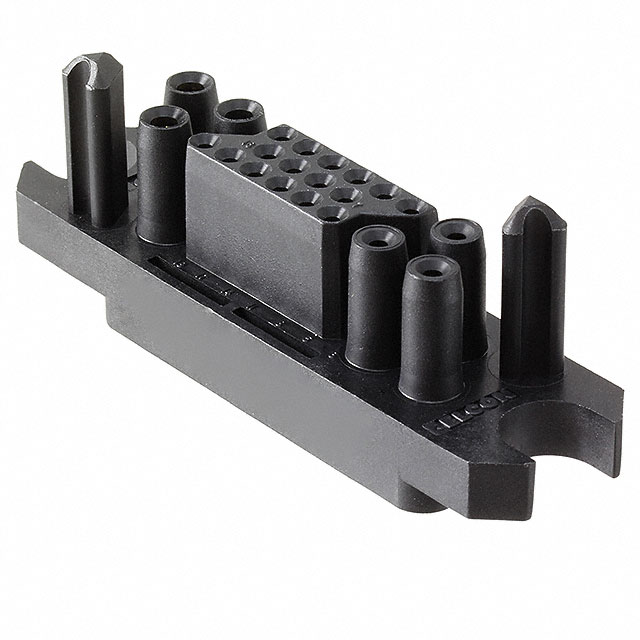

TE Connectivity AMP Connectors ELCON series 2212041-1 is a 22-position receptacle designed for PCB mounting. This through-hole component features female sockets with a black housing and a Mini-Drawer connector style for robust mating. The contact layout is configured with 16 signal contacts and 6 power contacts, supported by integral guide pins for enhanced alignment during assembly. This high-density connector is suitable for applications requiring reliable signal and power delivery in demanding environments, commonly found in industrial automation, medical equipment, and test and measurement systems. The component is supplied in bulk packaging.
Additional Information
Series: ELCONRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 22 |
| Pitch | - |
| Number of Rows | 3 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Mini-Drawer |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 16 Signal, 6 Power |
| Number of Columns | - |
