2198267-2
CONN HDR DUAL BEAM 48POS EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

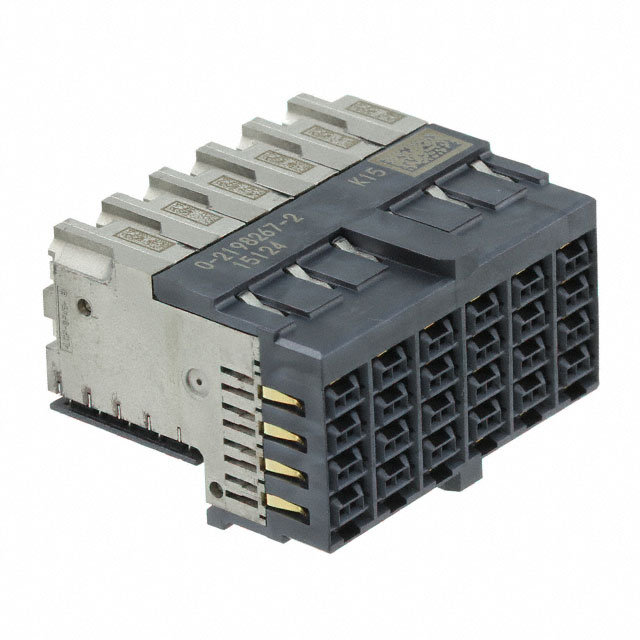

TE Connectivity AMP Connectors STRADA Whisper series 48-position, right-angle board edge header, part number 2198267-2. This component features dual beam male pins and blades with through-hole, press-fit termination. Designed for demanding backplane applications, it offers a 0.177" (4.50mm) pitch and a 4-row, 6-column configuration, supporting 24 differential pairs. The black housing ensures robust performance in high-speed data communication systems. This connector is widely utilized in telecommunications, data networking, and enterprise computing infrastructure.
Additional Information
Series: STRADA WhisperRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 48 |
| Pitch | 0.177"" (4.50mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Dual Beam, Center |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 24 Differential Pairs |
| Number of Columns | 6 |
