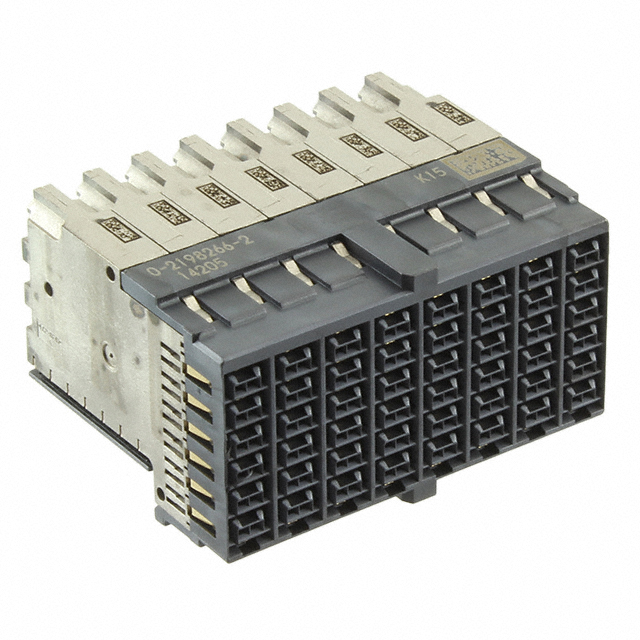

2198266-2
CONN RCPT DUAL BEAM 96P EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
96 Connector Receptacle, Female Sockets and Blade Sockets Board Edge, Through Hole, Right Angle Black Dual Beam, Center
Additional Information
Series: STRADA WhisperRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.177"" (4.50mm) |
| Number of Rows | 6 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Dual Beam, Center |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 48 Differential Pairs |
| Number of Columns | 8 |
