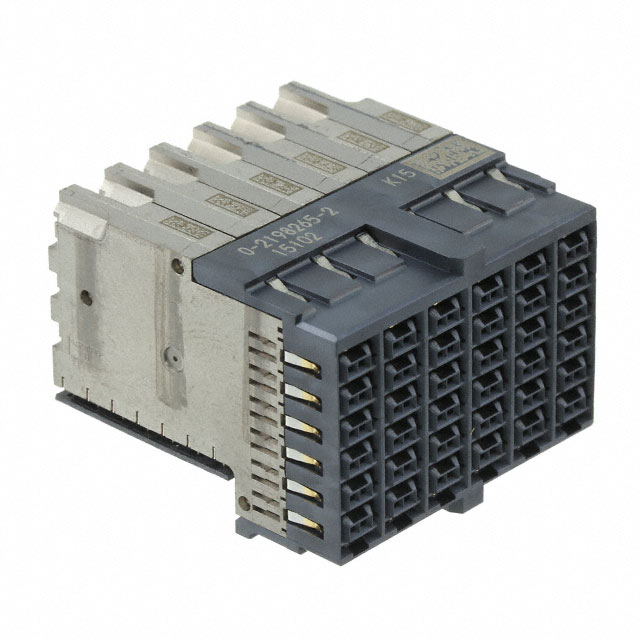

2198265-2
CONN RCPT DUAL BEAM 72P EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
72 Connector Receptacle, Female Sockets and Male Pins Board Edge, Through Hole, Right Angle Black Dual Beam, Center
Additional Information
Series: STRADA WhisperRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets and Male Pins |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 72 |
| Pitch | 0.177"" (4.50mm) |
| Number of Rows | 6 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | Dual Beam, Center |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 36 Differential Pairs |
| Number of Columns | 6 |
