2143314-3
CONN HDR IMPACT 96POS EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

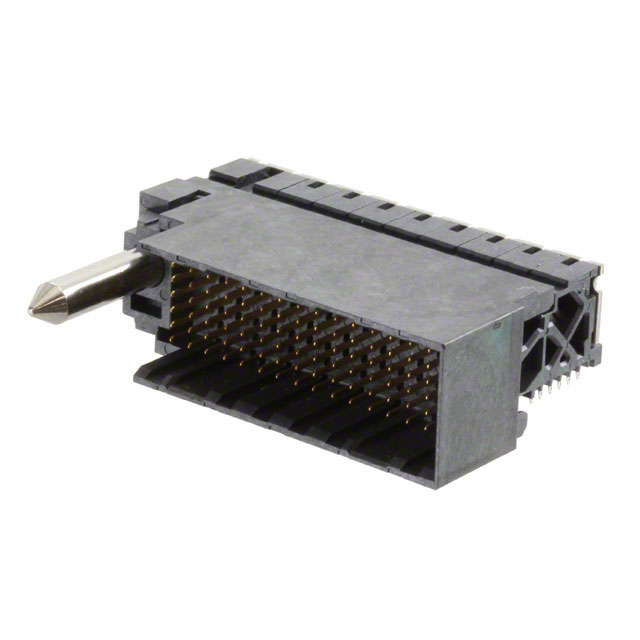

96 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black Impact, Guide Left
Additional Information
Series: ImpactRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | - |
| Number of Rows | 6 |
| Number of Positions Loaded | - |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Impact, Guide Left |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | 16 |
