211580-2
CONN HEADER 62POS PNL MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

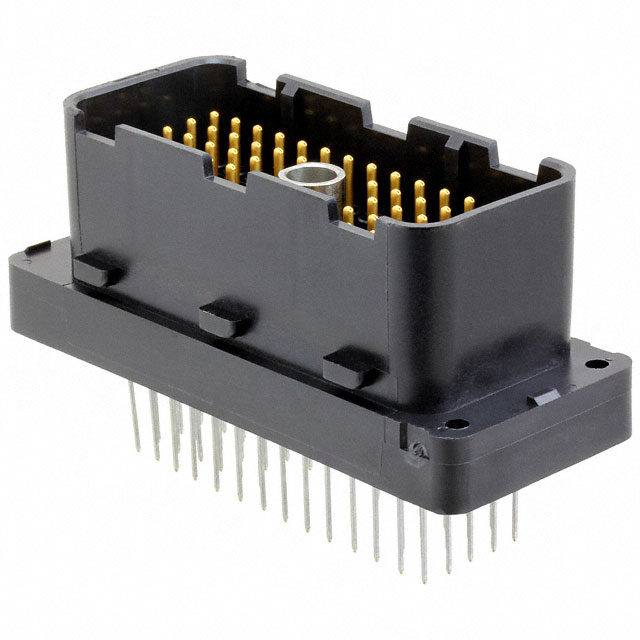

TE Connectivity AMP Connectors Metrimate Series 211580-2 is a 62-position male pin header designed for panel mounting with through-hole termination. This robust connector features gold-plated contacts with a thickness of 30.0µin (0.76µm) for reliable performance and durability. The black housing is constructed for demanding applications, offering a secure connection in a 5-row configuration with a 0.197" (5.00mm) pitch. Commonly employed in industrial automation, telecommunications, and medical equipment, this header provides a high-density interface solution. The component is supplied in trays.
Additional Information
Series: MetrimateRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 62 |
| Pitch | 0.197"" (5.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
